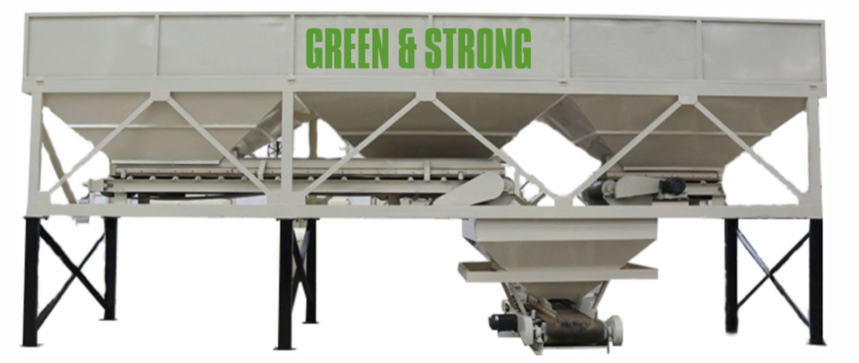

Material Preparation Machinery

Collect

Description

Model & specification	1600	1200	800	B600
Capacity of weighing hopper (L)	1600	1200	800	600
Capacity of storage hopper (m ³)	(2-4)x5	(2-4)x3.5	(2-3)x2	2x1.5
Theoretical productivity （m³/h）	75	56	48	18
Batching accuracy	±2%	±2%	±2%	±2%
Maximum weighing value (kg)	3000	3000	2000	1500
Quantity of ingredients available	2-4	2-4	2-3	2
Feeding height（M）	3	2.9	2.4	2.4
Feeding belt speed （m/s）	1.4	1.25	1.25	1.25
Power(kw)	(3-5)x5.5	(3-5)x3	(3-5)x2.2	3x3
Overall weight （kg）	4500-5600	3500-5000	1750-2450	1400
Overall dimension (length × wide × height (mm)	(6600-13200)* 2200*3500	(610012200) 2200*2680	(5640-8400)20002680	36601280 2450
