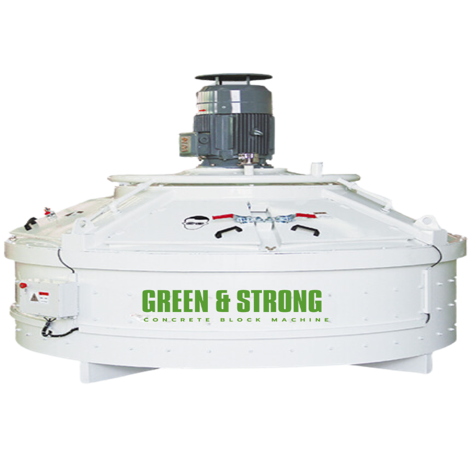

Planetary Mixer

Collect

Description

Type	CMP500	CMP750	CMP1000	CMP1250	CMP1500
Output capacity(L)	500	750	1000	1250	1500
Input capacity(L)	750	1125	1500	1875	2250
Output weight(Kg)	1200	1800	2400	3000	3600
Mixing power(Kw)	18.5	30	37	45	55
Discharging power(Kw)	Pneumatic discharge(optional hydraulic)
Planet/mixing arm	1/2	1/2	1/2	2/4	2/4
Paddle(nr)	1	1	1	1	1
Discharging paddle(nr)	1	1	1	1	1
Weight(Kw)	2400	3900	6200	6700	7700
Lighting power(Kw)	4	7.5	11	15	15
Dimension(LxWxH,MM)	2230x2080x1880	2580x2340x2195	2890x2602x2220	3060x2760x2305	3230x2902x2470
