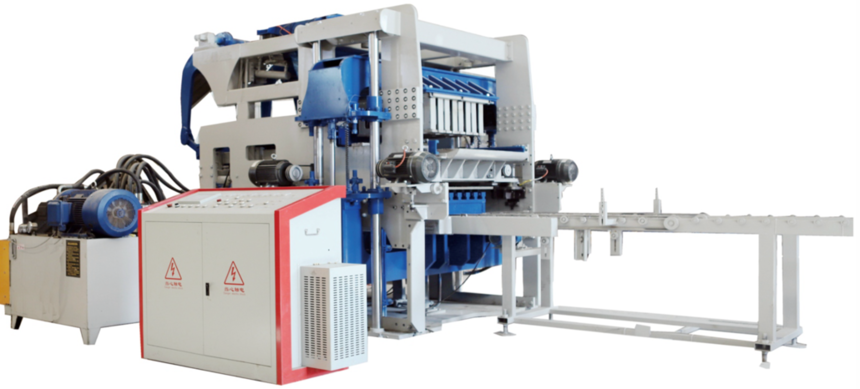

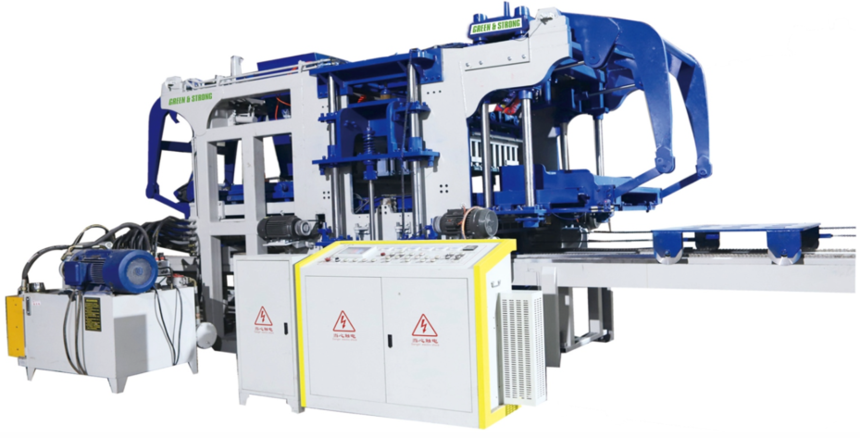

M Series, design for Self-Insulting Block

Actuating shock force

98KN

98KN

98KN

Frequency of shock

6500(Time/Minute)

6500(Time/Minute)

6500(Time/Minute)

Amplitude

15mm

15mm

15mm

Noise

95db(A)

95db(A)

95db(A)

Shock time

8(Second/Time)

8(Second/Time)

8(Second/Time)

Overall dimension

8155*3360*3300(mm)

6350*3360*2895(mm)

5800*3500*3400(mm)

Installed capacity

30Kw Hydraulic, 8*5.5Kw Vibration

22Kw Hydraulic,6*5.5Kw Vibration

22Kw Hydraulic,4*5.5Kw Vibration

Weight of brick machine

21.66T

17.46T

12.28T

Maximum pressure

18Mpa

18Mpa

18Mpa

Pallet size

1150*1350

1100*900

930*900

Product Height

30-200mm

30-200mm

30-200mm

M15

M10

M8

M15

M10

M8

M15

M10

M8

Standard brick 240* 115*53mm

95

54

45

20000

18000

10800

12-15Second/Time

Hollow brick 190*190*390mm

15

10

8

2700

1800

1440

20Second/Time

Interlocking brick 225*112.5*60mm

9

6

4

1620

1080

720

20Second/Time
